उत्पाद विवरण:
|
| उत्पाद का नाम: | ग्रे थर्मल गैप पैड इलेक्ट्रॉनिक कूलिंग समाधानों के लिए उत्कृष्ट 15.0W/mK तापीय चालकता और लचीली लोच प | प्रकार: | 15.0W/mK |
|---|---|---|---|
| आवेदन: | इलेक्ट्रॉनिक कूलिंग समाधान | कीवर्ड: | थर्मल गैप पैड |
| रंग: | स्लेटी | कठोरता: | 45 किनारे 00 |
| विशिष्ट गुरुत्व: | 3.3 ग्राम/सेमी³ | अनुशंसित संचालन |तापमान (%22C): | -40 से 200 ℃ |
| ब्रेकडाउन वोल्टेज (वी/मिमी): | ≥5500 वीएसी |

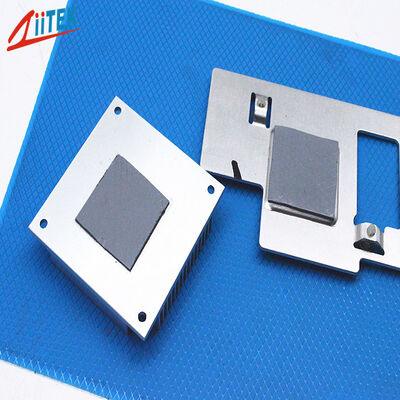

Gray Thermal Gap Pad Offering Excellent 15.0W/mK Thermal Conductivity and Flexible Elasticity for Electronic Cooling Solutions
Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste,thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel , silicone foam, silicone-free thermal pads etc.We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.

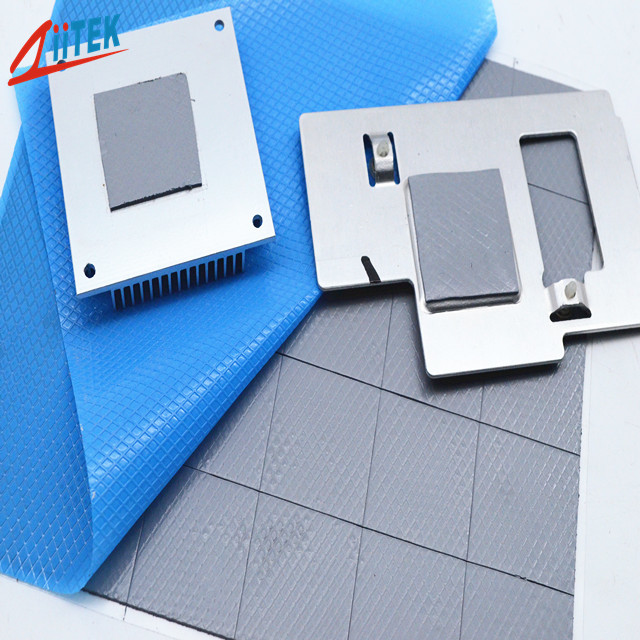

| Typical Properties of TIF®800HS Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.3 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.030 | 0.040~0.200 | ASTM D374 |
| 0.75 | 1.00~5.00 | ||
| Hardness (Shroe 00) | 45 | 45 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant@ 1MHz | 9.0 | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 15.0 W/m-K | ASTM D5470 | |
| 15.0 W/m-K | ISO22007 | ||
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
