| Product name: | Used Between Transistors And Heat Sinks High Reliability Thermal Graphite Pad Thermal Graphite Sheet | Thickness: | 0.15mm |
|---|---|---|---|
| Density: | 1.4 g/cc | Thermal conductivity (Z Axis Direction): | 2.5W/m-K |
| Hardness: | 90 Shore A | Application: | Between Heat Sinks And External casings |
| Color: | Black | Keywords: | Thermal Graphite Sheet |

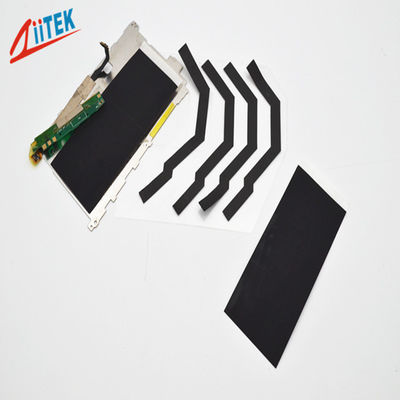

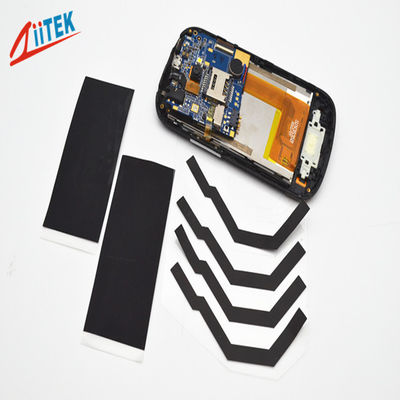

Used Between Transistors And Heat Sinks High Reliability Thermal Graphite Pad Thermal Graphite Sheet
TIR®300L-A1 Series is a graphite-enhanced composite thermal interface material engineered forhigh thermal conductivity and reliable heat dissipation.Reinforced with an aluminum foil layer,it maintains structural integrity throughout handling and application. The material conforms well to a variety of surfaces, enabling efficient thermal contact and ease of assembly. lt is ideally suited for use between power transistors and heat sinks, as well as in large-areathermal interface applications.
Feature
> Excellent thermal impedance
> Replaces traditional thermal grease
> High reliability
> Easy to apply to surfaces
Application
> Between transistors and heat sinks
> Between mechanical structures
> Between heat sinks and externalcasings
| Typical Properties of TIR®300L-A1 series | |||
| Product Name | TIR®300L-A1 | Test Method | |
| Colour | Black | Visual | |
| Reinforcement Carrier | Aluminum | ***** | |
| Thickness range | 0.15 mm | ASTM D374 | |
| Hardness | 90 Shore 00 | ASTM D2240 | |
| Density | 1.4g/cc | ASTM D792 | |
| Volume Resistivity(ohm-cm) | 1*102 | ASTM D257 | |
| Continuous Use Temperature | -60℃~ 180℃ | Ziitek Test Method | |
| Thermal Conductivity(W/mK) | 2.5 | ASTM D5470 | |
| Thermal impedance(℃-in2/W)@30psi | 0.3 | ASTM D5470 | |
| Thermal impedance(℃-in2/W)@50psi | 0.25 | ASTM D5470 | |
| 180° Peel Strength | 1.0N/25mm | ASTM D3330 (Steel,Immediate) | |
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
