उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| उत्पादों का नाम: | स्ट्रीट लाइट के लिए थर्मल प्रबंधन सामग्री प्रीमियम सॉफ्ट थर्मली कंडक्टिव गैप फिलर पैड | रंग: | हरा |
|---|---|---|---|
| मोटाई: | 0.020 "(0.5 मिमी) ~ 0.200" (5.0 मिमी) | कठोरता: | 35 किनारे 00 |
| नमूना: | नमूना मुक्त | ऊष्मीय चालकता: | 1.5W / एमके |
| आवेदन: | सेमीकंडक्टर, स्ट्रीट लाइट | निरंतर उपयोग अस्थायी: | -45 से 200℃ |
| कीवर्ड: | थर्मल प्रबंधन सामग्री |

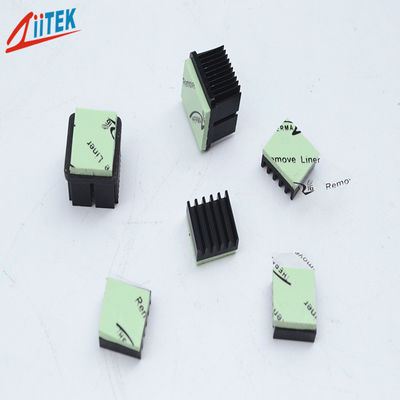

Thermal Management Materials Premium Soft Thermally Conductive Gap Filler Pads For Street Lights
The TIF®100-07E Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
| Typical Properties of TIF®100-07E Series | |||
| Property | Value | Test method | |
| Color | Green | ****** | |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
| Thickness range | 0.020"(0.5mm)~0.200"(0.50mm) | ASTM D374 | |
| Specific Gravity | 2.3g/cc | ASTM D297 | |
| Hardness | 35 Shore 00 | ASTM 2240 | |
| Continuos Use Temp | -45 to 200℃ | ****** | |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
| Dielectric Constant | 4.7 MHz | ASTM D150 | |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | 94 V0 | UL E331100 | |
| Outgassing(TML) | 0.35% | ASTM E595 | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
