उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| उत्पादों का नाम: | एलईडी लैपटॉप जीपीयू एसएसडी कूलिंग के लिए कस्टम आकार फोटोवोल्टिक थर्मल पैड 1-15W 0.5 मिमी ~ 5.0 मिमी | कीवर्ड: | थर्मल पैड |
|---|---|---|---|
| ऊष्मीय चालकता: | 1.5W / एमके | रंग: | हरा |
| मोटाई: | 0.020 "(0.5 मिमी) ~ 0.200" (5.0 मिमी) | कठोरता: | 27 शोर 00 |
| निरंतर उपयोग अस्थायी: | -45 से 200℃ | नमूना: | नमूना मुक्त |
| आवेदन: | फोटोवोल्टिक एलईडी लैपटॉप जीपीयू एसएसडी कूलिंग |
Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling
The TIF®100-07U Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications

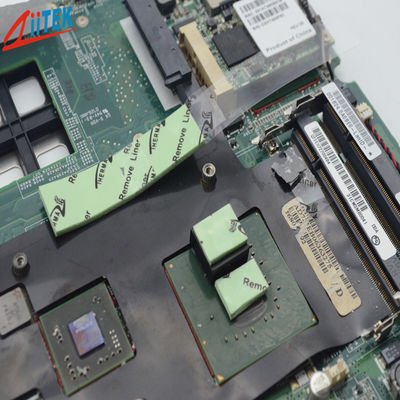

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
| Typical Properties of TIF®100-07U Series | |||
| Property | Value | Test method | |
| Color | Green | ****** | |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
| Thickness range | 0.020"(0.5mm)~0.200"(0.50mm) | ASTM D374 | |
| Specific Gravity | 2.2g/cc | ASTM D297 | |
| Hardness | 27 Shore 00 | ASTM 2240 | |
| Continuos Use Temp | -45 to 200℃ | ****** | |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
| Dielectric Constant | 3.5 MHz | ASTM D150 | |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | 94 V0 | UL E331100 | |
| Outgassing(TML) | 0.35% | ASTM E595 | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)

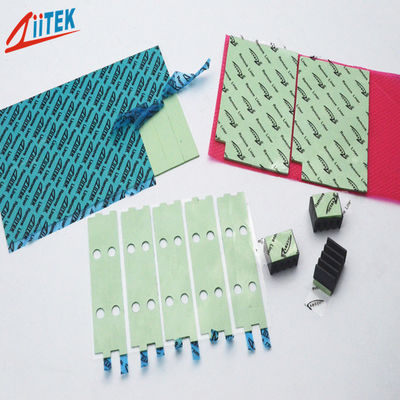

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
