उत्पाद विवरण:
|
| उत्पाद का नाम: | विद्युत उपकरण ताप अपव्यय अनुप्रयोगों के लिए 3.0W/mK तापीय चालकता के साथ थर्मल प्रवाहकीय पैड सिलिकॉन | प्रकार: | 3.0W / एमके |
|---|---|---|---|
| आवेदन: | विद्युत उपकरण ताप अपव्यय अनुप्रयोग | कीवर्ड: | तापीय प्रवाहकीय पैड |
| कठोरता: | 65/45 किनारा 00 | विशिष्ट गुरुत्व: | 3.0 ग्राम/सेमी³ |
| अनुशंसित संचालन |तापमान (%22C): | -40 से 200 ℃ | ब्रेकडाउन वोल्टेज (वी/मिमी): | ≥5500 वीएसी |
| रंग: | सफ़ेद |

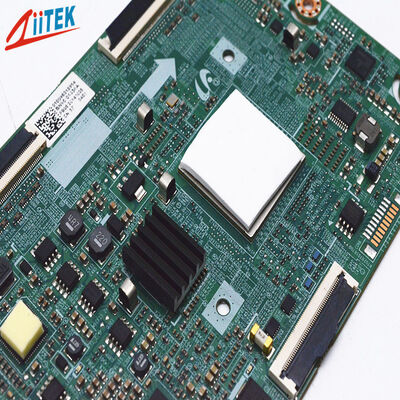

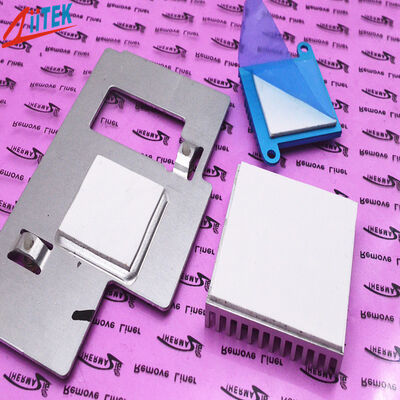

Thermal Conductive Pad Silicone Material with 3.0W/mK Thermal Conductivity for Power Tools Heat Dissipation Applications
Dongguan Ziitek Electronic Material and Technology Ltd. (ZIITEK) has been deeply involved in the field of heat conducting materials for many years, and is a high-tech enterprise integrating R&D, production and sales. Headquartered in Dongguan, with four production bases in Kunshan, Taiwan Province and Viet Nam, the global delivery capacity is stable and reliable. Mainly engaged in thermal conductive silica pads, thermal conductive graphite sheets, thermal conductive insulation materials, PCM phase change materials, thermal conductive plastics, thermal conductive silicone grease/paste, thermal conductive gel, thermal conductive epoxy potting glue, thermal conductive silicone adhesive, silicone foam, and silicon-free thermal pads. The core explosive heating plate is widely recognized by the market. Our products have passed ISO9001 and IATF16949 certification, and meet RoHS/UL standards, and are widely used in new energy, 5G, data center, automotive electronics and other fields.
| Typical Properties of TIF®100-30-06S Series | |||
| Property | Value | Test method | |
| Color | White | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness (Shroe 00) | 65 | 45 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant@ 1MHz | 5.2 | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 | |
| 3.0 W/m-K | ISO22007 | ||
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
