उत्पाद विवरण:
|
| उत्पाद का नाम: | थर्मल प्रवाहकीय पैड जिसमें गर्मी हस्तांतरण और घटक संरक्षण के लिए संतुलित कोमलता और 3W थर्मल चालकता ह | मोटाई: | अलग-अलग मोटाई में उपलब्ध है |
|---|---|---|---|
| प्रकार: | 3.0W / एमके | निर्माण एवं संरचना: | सिरेमिक से भरा सिलिकॉन इलास्टोमेर |
| आवेदन: | हीट ट्रांसफर के लिए | विशिष्ट गुरुत्व: | 3.15 ग्राम/सेमी³ |
| कठोरता: | 12 किनारे 00 | ब्रेकडाउन वोल्टेज (वी/मिमी): | ≥5500 |
| कीवर्ड: | तापीय प्रवाहकीय पैड |
Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm) Standard Size: 16"×16" (406 mm×406 mm) Reinforcement Fabric: FG (Fiberglass) Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening) Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive) The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.Thermal Conductive Pad Featuring Balanced Softness And 3W Thermal Conductivity

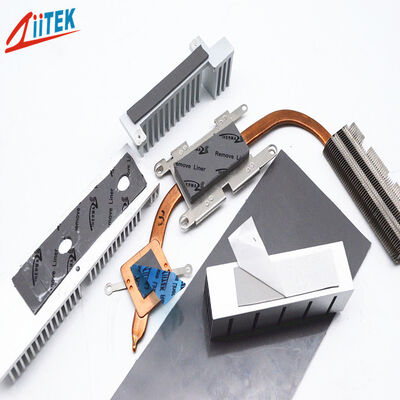

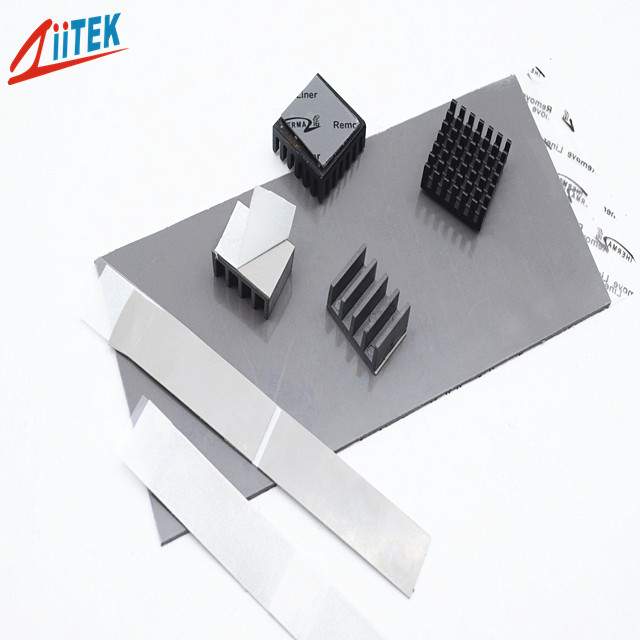

The TIF®100-30-11ES Series is a thermal pad specifically designed to tackle high-level cooling challenges in environments sensitive to extreme mechanical stress. It combines high thermal conductivity with near-fluid softness, ensuring perfect filling of the contact interface even under ultra-low mounting pressure, completely eliminating air thermal resistance, and providing superior thermal solutions and physical protection for the most precise and high heat flux electronic components.
Key Features
Applications
Typical Properties of TIF®100-30-11ES Series
Property
Value
Test Method
Color
Dark Gray
Visual
Construction & Composition
Ceramic filled silicone elastomer
******
Density (g/cm³)
3.15
ASTM D792
Thickness Range (inch/mm)
0.020~0.030 (0.50~0.75) | 0.040~0.200 (1.00~5.00)
ASTM D374
Hardness (Shore 00)
12
ASTM 2240
Continuous Use Temp
-40 to 200℃
***
Breakdown Voltage (V/mm)
≥5500
ASTM D149
Dielectric Constant @1MHz
7.0
ASTM D150
Volume Resistivity
＞1.0×10¹² Ohm-meter
ASTM D257
Thermal Conductivity (W/m-K)
3.0
ASTM D5470 / ISO22007
Fire rating
V-0
UL 94 (E331100)
Product Specifications
Component Codes
Our Services
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are manufacturer in China.
Q: How do I place an order?
A:
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
