उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| उत्पाद का नाम: | एआई प्रोसेसर एआई सर्वर के लिए लो ब्लीड थर्मल पैड थर्मल गैप पैड सामग्री | कठोरता: | 55 शोर 00 |
|---|---|---|---|
| ऊष्मीय चालकता: | 2.8 डब्ल्यू / एमके | लौ रेटिंग: | यूएल 94 वी-0 |
| निरंतर उपयोग अस्थायी: | -40 से 200 ℃ | कीवर्ड: | थर्मल पैड |
| विशिष्ट गुरुत्व: | 3.0g/cc | आवेदन: | एआई प्रोसेसर एआई सर्वर |

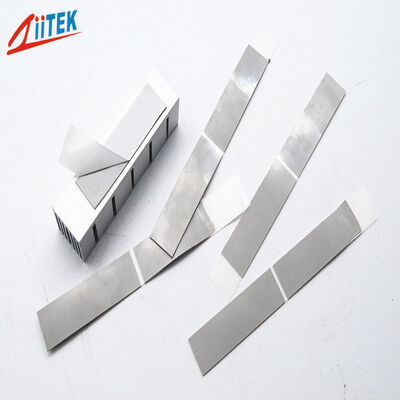

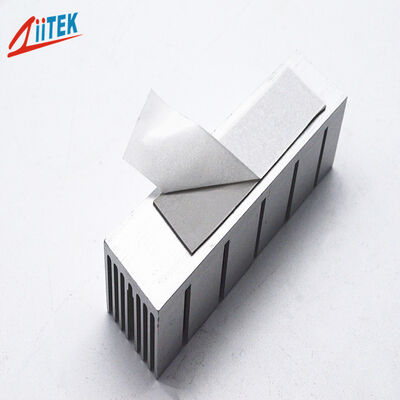

Low Bleed Thermal Pad Thermal GAP PAD Materials For AI Processors AI Servers
The TIF®100 2855-10 is a general-purpose thermal pad with balanced performance. It offers high thermal conductivity and moderate hardness. This balanced design provides good surface conformability and excellent ease of use, effectively delivering a thermal transfer path and basic physical protection for a wide range of electronic components.
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
Features
> Good thermal conductive: 2.8W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance
Applications
> Cpu heat sinking
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures
| Typical Properties of The TIF®100 2855-10 Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.5) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 55 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 6.2 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 2.8 W/m-K | ASTM D5470 | |
| 2.8 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
